Dear ,
Our vendor OPOTEK has introduced many new laser models which are based on new pump lasers, optical and mechanical improvements. So we have lots to tell you!
| |

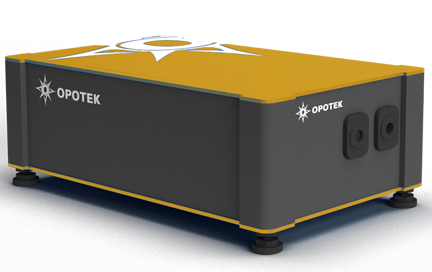

New features inside our Opolette-UX, Radiant-QX and Opolucis series:
- DPSS technology pulsing at 100Hz at peak energy 40mJ.
- Flashlamp pumped models up to 170mJ OPO peak energy.
- Advanced tuning motors for smaller steps and 50ms tuning speed; tuning and pulsing are synchronized.
- Improved OPO cavities with conversion efficiencies up to 45% creating higher OPO energies and/or smaller pump lasers.
- Decreased, specified spectral linewidths and low OPO beam divergence.
- Wide tuning range in one laser from 210 - 2400 nm.
- Opotek has always had the Signal and Idler beam through 1 output port, which simplifies your optical layout.
- Fully integrated pump and OPO for maximum laser stability.
- Faster warmup times through improved design.
| |
| |
| |
| |
Application where we know our lasers work very well: - Spectroscopy with small OPO linewidth and high tuning resolutions. Nanosecond range pulses will support time resolved measurements.
- Photo acoustics: stable puls energy and tunable wavelength supports optimal photo acoustics parameters.
- Lidar: high puls energies, low beam-M2 and low beam divergence enable accurate and long distance measurements.
| |
| |
Do you want to talk about how our new OPOTEK lasers could fit in your application? Mail us at below email address.
Davey Loos
Laser 2000 Benelux +31-297-266191 dloos@laser2000.nl | |

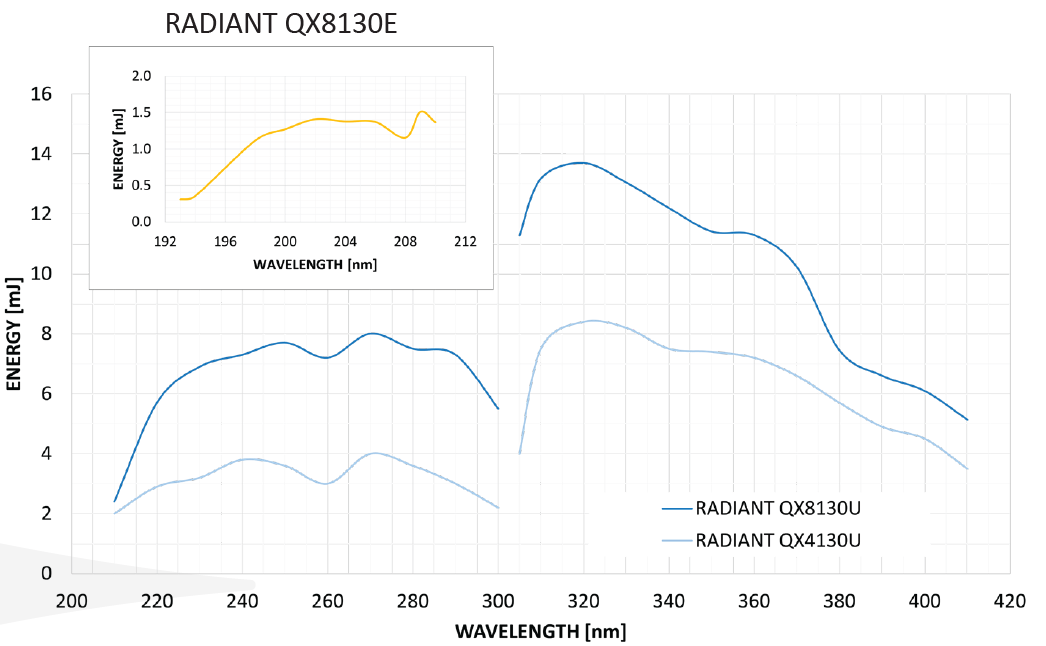

One example of tuning curves in the UV-Blue tuning range: | |
| |
| |
| |
| |
